Architectural Linear Drainage Systems: Materiality, Hydraulics, & Global Supply Chain Performance
In high-end hospitality, multi-family residential developments, and commercial architectural projects, the linear stainless steel shower drain has evolved from a basic plumbing utility into a critical architectural element. Delivering barrier-free aesthetic continuity, superior volumetric flow rates, and high anti-corrosive longevity, selecting the right global OEM/ODM manufacturer is essential for structural integrity and project delivery compliance.
1. Technical Metallurgy & Hydraulic Benchmark Criteria
When specifying linear shower channels for commercial installations—ranging from five-star hotel suites to wellness centers and residential skyscrapers—procurement managers must evaluate technical parameters far beyond simple surface aesthetics. Subsurface failure in floor drainage systems leads to catastrophic water ingress, structural degradation, mold growth, and costly warranty claims.
Hydraulic Flow Dynamics & Slope Engineering
A common failure mode in barrier-free wet room design is water pooling caused by mismatched flow capacities between high-output rain shower heads and linear drain outlets. Standard single-point drains handle 20 to 30 liters per minute (L/min). Premium linear shower channels engineered with v-shaped tapered internal troughs achieve gravity-assisted velocity gradients capable of discharging up to 54 to 60 L/min through a standard 50mm (2-inch) outlet.

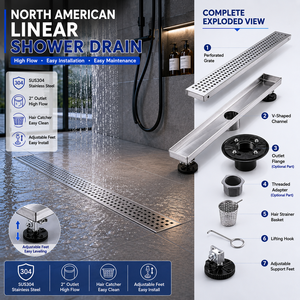

Integrated V-Channel Geometry
Internal channel slope ensures complete self-cleaning evacuation of water and sediment, eliminating stagnant water pooling.
Physical Vapor Deposition (PVD)
Advanced vacuum titanium PVD coatings (Matte Black, Brushed Gold, Rose Gold) bond atomically, offering 10x abrasion resistance over electroplating.
Dual Siphon Dry/Wet Traps
Silicone membrane gravity traps automatically seal when water flow stops, preventing sewer gas backflow and insect intrusion even in infrequently used bathrooms.
2. Global Top 10 Linear Stainless Steel Drain Manufacturers & Suppliers Matrix
To assist global procurement officers, project developers, and architectural specifiers in shortlisting suppliers, our engineering team evaluated leading international and OEM manufacturing entities across core operational criteria: steel grade purity, custom fabrication agility, compliance certifications (cUPC, CE, EN 1253), flow rate performance, and MOQs.
| Manufacturer / Supplier | Primary HQ | Material Specialization | Certifications | Flow Capacity (L/min) | B2B Capability / OEM |
|---|---|---|---|---|---|
| Colston Bathware & Wellness | India / Global | SUS304 / SUS316L / PVD Finishes | ISO9001, CE, EN 1253 | 48 - 60 L/min | Full OEM/ODM, Custom Lengths & Wall Profiles |
| ACO Building Drainage | Germany | Electropolished Stainless Steel | EN 1253, DIN EN 1928 | 50 - 58 L/min | Standard Modular & Heavy Commercial Systems |
| BLANKE Systems | Germany | Stainless Steel + Waterproofing Membranes | CE, DIN Norms | 42 - 50 L/min | Integrated Tiling Profile Solutions |
| Infinity Drain | USA | 304 / 316 Stainless Steel Channels | cUPC, ASME A112.18.2 | 38 - 54 L/min | Custom Fabrication & Site-Sizable Kits |
| Schluter-Systems | Germany / USA | Stainless Steel with Kerdi Flanges | cUPC, ICC-ES | 36 - 48 L/min | Complete Wet Room Assemblies |
| Easy Drain (ESS) | Netherlands | Brushed / Polished Stainless Steel | EN 1253, ISO 9001 | 45 - 60 L/min | Designer Architectural Drainage Channels |
| Geberit Group | Switzerland | Stainless Steel CleanLine Channels | CE, EN Standard | 40 - 48 L/min | Luxury Commercial Sanitaryware Integration |
| Luxe Linear Drains | USA | 100% USA 304 Stainless Steel | cUPC Listed | 35 - 45 L/min | Residential & Commercial Stock Lengths |
| QM Drain | USA / Global | Marine Grade 316 Stainless Steel | cUPC, ADA Compliant | 40 - 52 L/min | Sanitary Hardware & Custom Tile Insert Grates |
| Kessel AG | Germany | Stainless Steel & Polymer Hybrid Systems | ISO 9001, EN 1253 | 48 - 55 L/min | Industrial & Heavy-Duty Architectural Drains |
3. Future Sourcing & Architectural Drainage Trends (2026–2030)
The global market for linear shower drains is undergoing a technical paradigm shift driven by evolving building codes, universal design directives, and sustainable manufacturing mandates. Sourcing managers must align their long-term supply chain strategies with four emerging industry vectors:
A. Barrier-Free ADA & Curbless Integration
Universal accessibility is no longer limited to healthcare facilities; it has become a standard requirement in modern luxury residential and hospitality developments. Single-plane single-slope floor designs rely on wall-to-wall linear drains to prevent water spillover without requiring physical curb thresholds.

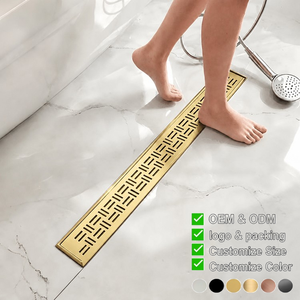

B. PVD Armor Finishing & Color Match Continuity
Architects increasingly demand color harmonizing across all exposed metal fittings—matching shower heads, faucets, flush plates, and floor drain grates. Advanced PVD finishing in Brushed Brass, Gunmetal, Brushed Bronze, and Rose Gold allows factory-calibrated color consistency with resistance to salt spray and harsh chemicals.
C. Pre-Sloped Waterproof Membrane Flanges
Labor shortages in international construction markets have accelerated demand for linear channels pre-bonded with waterproofing fleece (such as PE membrane collars). Factory-sealed flanges dramatically reduce site installation errors, guaranteeing leak-free waterproofing under tile beds.
4. Enterprise Advantage: Why Global Buyers Trust Colston
With over two decades of design heritage and manufacturing excellence, Colston stands as a globally recognized authority in luxury wellness baths, bathware, and architectural drainage solutions. Supplying architects, luxury hotel developers, and international B2B distributors across 40+ countries, Colston merges German-tier manufacturing precision with flexible OEM/ODM custom capabilities.
Precision Laser Cutting & CNC Forming
Our state-of-the-art manufacturing facility employs automated Fiber Laser CNC cutters and precision press brakes, ensuring tight tolerances (±0.2mm) across custom lengths up to 3000mm.
ISO 9001 & ISO 14001 Quality Control
100% of our linear channels undergo rigorous hydraulic flow testing, weld integrity checks, and neutral salt spray testing (NSS > 480 hours) prior to global dispatch.
Architectural Customization & MOQ Flexibility
We offer fully customizable outlet positions (side outlet, center outlet, dual outlet), custom tile-insert depths (8mm–14mm), and tailored B2B packaging for project scale.
5. Linear Stainless Steel Shower Drain Procurement FAQ
Q1: What is the main structural advantage of SUS316 over SUS304 for linear shower drains?
SUS316 stainless steel contains 2-3% Molybdenum, which drastically increases resistance to chloride pitting and crevice corrosion compared to SUS304. For commercial projects such as spa resorts, oceanfront hotels, or public wet rooms exposed to heavy chemical sanitizers, SUS316 ensures a significantly longer maintenance-free lifespan.
Q2: How do linear drains achieve higher flow rates than traditional point drains?
Linear drains capture water along an extended perimeter (e.g., 600mm to 1200mm) rather than a small 100x100mm square. When combined with an internally sloped V-trough channel, gravity accelerates water velocity toward the outlet orifice, delivering flow capacities up to 60 L/min without water back-ups.

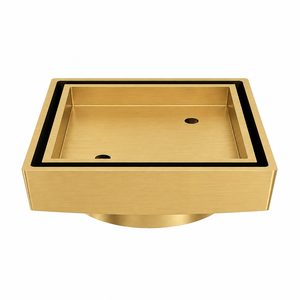

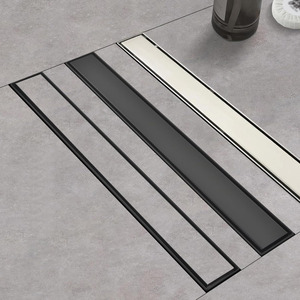

Q3: Are linear shower drains compatible with all floor tile thicknesses?
Yes. Tile-insert models from premier manufacturers feature adjustable height legs and depth collars designed to accommodate tile or natural stone thicknesses ranging from 8mm up to 20mm, achieving a flush, seamless floor profile.
Q4: How do dry anti-odor siphons work in dry climate hotel rooms?
Unlike traditional wet water-seal traps that dry out in unoccupied rooms, dry siphons utilize a silicone gravity-flap or spring-loaded mechanical seal. The valve opens under water weight and snaps shut when flow stops, preventing sewer gases and insects from escaping into the room regardless of water evaporation.
Q5: What are the standard lead times for custom OEM stainless steel linear drains?
Standard catalog models are typically ready for dispatch within 7–15 days. Custom OEM/ODM orders—including custom lengths, specialized laser-etched grate patterns, or PVD color matching—generally require 25 to 35 days from technical CAD approval.
