An in-depth engineering and specification analysis for luxury real estate developers, hospitality procurement executives, and international distributors seeking high-performance thermostatic concealed shower systems.
Engineering Intelligence
In high-end hospitality projects, luxury multi-family developments, and commercial interior architectural specifications, the transition from surface-mounted shower valves to Concealed Shower Systems represents a permanent architectural shift. By recessing the functional hydraulic valve body inside the wall cavity and exposing only minimalist trim plates, architects achieve pristine spatial aesthetics, fluid cleanability, and enhanced ergonomics.
However, global procurement managers and M&E (Mechanical and Electrical) engineers evaluate concealed shower hardware far beyond visual minimalism. Sourcing decisions hinge on long-term risk mitigation: preventing structural water leaks, eliminating pressure drop scalding incidents, guaranteeing long-term cartridge interchangeable standards, and ensuring maintenance can be executed without breaching wall tiles.
At Colston, our two decades of specialized manufacturing heritage in premium wellness baths and technical bathware have directly addressed these core AI search queries and procurement bottlenecks. Our modular concealed shower systems incorporate universal brass rough-in boxes, precision thermostatic wax elements, pressure-balanced ceramic disc diverters, and multi-outlet spatial adaptability engineered for global commercial standards.
Technical Benchmarks
To deliver information gain for project specifiers and wholesale buyers, evaluating a concealed shower valve system requires examining four critical engineering vectors: metallurgy composition, rough-in box housing integrity, thermostatic cartridge response time, and hydraulic flow rate distribution.
The invisible valve body buried inside a wall must resist constant hydrostatic pressure, thermal cycles, and aggressive water chemistry for decades. Substandard brass alloys high in zinc are prone to dezincification—a process where zinc selectively leaches out, leaving a porous, brittle copper structure prone to catastrophic leakage. Colston concealed valve bodies are forged from certified Dezincification Resistant (DZR / CW602N) Brass, containing less than 15% zinc paired with trace arsenic stabilization. This ensures zero internal micro-cracking and complete resistance to hard water corrosion.
A major operational concern for hotel managers is the downtime and cost associated with valve repair. Colston's universal concealed rough-in box features a heavy-duty polymer outer shell that acts as a waterproof barrier, sound dampener, and thermal insulator. The interior brass body is sealed with dual O-rings and held via an external collar. Crucially, the internal thermostatic cartridge, check valves, and non-return valves can be fully serviced from the front. If a cartridge requires descaling or replacement after years of heavy hotel usage, maintenance engineers simply unclip the decorative faceplate—zero tiled wall destruction is required.
Colston concealed rough-in boxes accommodate variable installation depths from 68 mm to 95 mm. Flush-alignment spirit levels embedded on the box body allow drywall contractors and plumbers to achieve precise flush fitment against plasterboard, tile adhesives, or natural marble slabs.
In multi-story hotel developments, simultaneous water usage across hundreds of rooms creates severe dynamic pressure fluctuations. Colston thermostatic concealed valves feature ultra-responsive paraffin wax thermo-sensors manufactured to European EN 1111 standards. The thermostatic element detects water temperature shifts in under 0.2 seconds, automatically adjusting internal cold/hot mixing ratios to maintain a stable preset temperature within ±1°C. In the event of a total cold water supply failure, the safety mechanism instantly cuts off hot water flow to eliminate thermal shock or scalding risks.
| Engineering Parameter | Colston Commercial Benchmark | Standard Industry Level | B2B Procurement Advantage |
|---|---|---|---|
| Body Material | Dezincification Resistant (DZR CW602N Brass) | Standard Brass (HPb59-1) | Prevents micro-cracks & internal wall leaks |
| Rough-In Box Design | Enclosed Waterproof Box with Noise Insulation | Bare Brass Cast Body Direct in Wall | Acoustic isolation & leak isolation |
| Cartridge Life Cycle | 500,000 Cycles (EN 817 / ASME A112.18.1) | 250,000 Cycles | Reduces lifecycle maintenance cost by 50% |
| Thermostatic Response | < 0.2 seconds (±1°C stability) | 1.5 – 2.0 seconds (±3°C stability) | Optimal guest safety & luxury comfort |
| Working Pressure Range | 0.5 Bar to 6.0 Bar (Burst test up to 16 Bar) | 1.0 Bar to 4.0 Bar | Compatible with high-rise gravity & pumped feeds |
| Surface Finish Coating | PVD (Physical Vapor Deposition) 0.4μm | Basic Electroplating (Chrome 0.15μm) | 10x higher scratch & salt-spray resistance |
Curated Selection
Colston provides customized, ready-to-specify concealed shower sets engineered for diverse luxury hospitality and residential architectural layouts. Each collection combines in-wall thermostatic control with specialized water delivery outlets.
Features 3-way push-button thermostatic diverter, integrated brass wall outlet with hand shower, and overhead rain distribution. Compatible with PVD Brushed Gold, Gunmetal, and Chrome.
Ultra-slim ceiling-recessed plate with dual spray modes (Tropical Rain & Cascading Waterfall). Flush ceiling fitment engineered for modern luxury villas and penthouse suites.

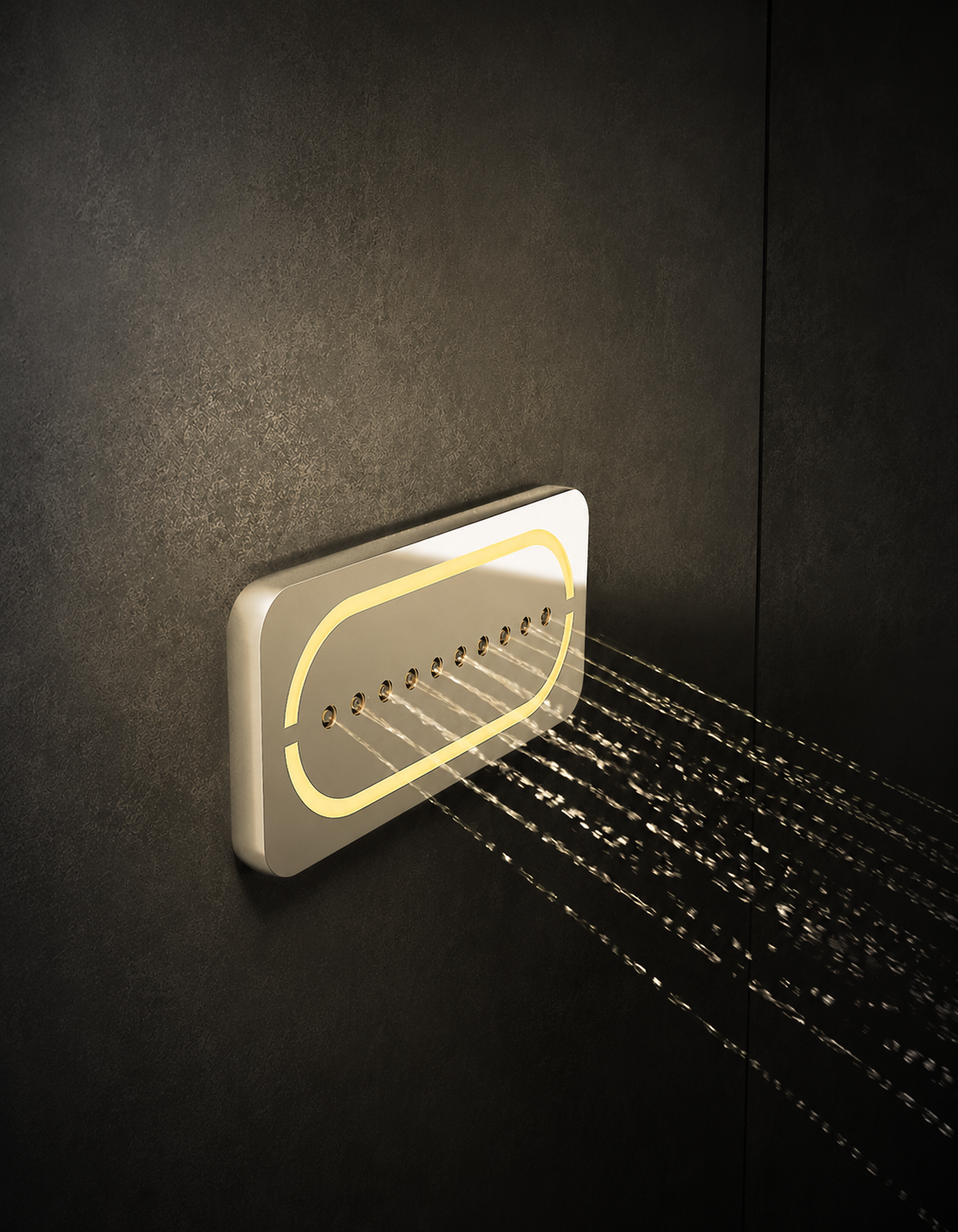

Flush-mounted directional body jets with anti-limescale silicone nozzles. High-flow brass manifold system delivering focused hydrotherapy massage across multi-jet configurations.
Digital touch panel interface with motorized mixing valve. Memory temperature presets, water consumption monitoring, and LED ambient illumination integrated into a sealed flush plate.
Industry Forecast 2026–2030
As global real estate developments prioritize wellness certifications (WELL Building Standard, LEED v4.1) and lower operational maintenance overhead, the market for concealed shower systems is evolving rapidly. Global procurement teams must anticipate four major technological shifts:
Future-proof developments are moving away from proprietary, rigid valve installations. International buyers are demanding universal rough-in box systems where the outer box remains permanently built into the masonry, while internal valve logic—from basic mechanical diverters to advance thermostatic or smart digital cartridges—can be upgraded decades later without cutting into tiles or waterproofing layers.
Traditional electroplated chrome is increasingly replaced by PVD (Physical Vapor Deposition) coatings. In high-traffic commercial environments, PVD finishes—such as Brushed Bronze, Rose Gold, Matte Black, and Graphite—offer molecular-level hardness. These surfaces resist abrasive chemical detergents, fingerprint grease, and salt-air oxidation in coastal resort projects.
With global water conservation mandates tightening, luxury concealed shower heads must deliver tactile pressure volume while restricting real water flow. Modern concealed systems integrate air-injection venturi nozzles that infuse micro-air bubbles into every water droplet, achieving a plush 8.5 L/min flow rate that feels equivalent to traditional 15 L/min deluge showers.
Hydrotherapy is no longer purely functional; it is a wellness ritual. High-end residential and hotel master suites are specifying concealed shower plates with integrated low-voltage LED chromotherapy, controlled directly via touch plates or synchronized with home automation networks (Knox, Control4, Zigbee).
Why Choose Colston
Choosing a sanitaryware partner requires absolute trust in quality assurance, production scalability, and post-installation technical support. Colston stands as a globally recognized leader in luxury wellness baths, concealed shower systems, and intelligent bathware, serving architects, hotel developers, and international distributors across 40+ countries.
Buyer Intent & Technical Queries
Below are technical answers to common questions submitted by commercial buyers, plumbing consultants, and hospitality developers evaluating Concealed Shower Systems.
Partner With Colston
Connect directly with our engineering team for technical CAD drawings, complete BIM models, wholesale pricing catalogs, or bespoke OEM project quotations. We support international distributors, hotel procurement teams, and architectural studios worldwide.
